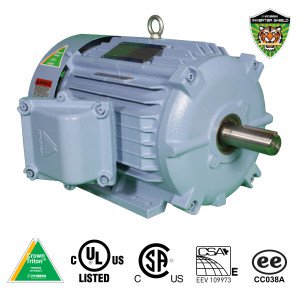

Hyundai Crown Triton Series Explosion Proof Inverter Duty TEXP Enclosure Rigid Base Three Phase Motors 3 HP 3600 RPM 182T Frame
Product Features:
- 208-230/460 Volt
- TEXP enclosure
- C-Face - Rigid Base
- Class F insulation with Class N Varnish
- Premium efficiency
- 1.15 service factor
- Class B temperature rise
- NEMA Design B
- Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
- Inverter duty with 1.0 service factor 4:1 CT (constant) / 10:1 CT (intermittent - 1 hour) / 10:1 VT
- Cast Iron frame and conduit box
- Suitable for part winding start on low voltage
- Unique multiple rating system for 40 degrees C and 55 degrees C ambient (T2C at 40 degrees C, T2B at 55 degrees C, T4 when thermostat is connected)
- Suitable for 50 hz operation with 1.0 service factor
- Class I, Division 1, Groups C & D, UL Certification
- CC # 038A
- CSA Energy Certified
Technical Specs for Model #IXHHI3-36-182T
HP: 3
RPM: 3600
Voltage: 208-230/460
Frame: 182T
FL Amps (A): 3.8
FL Eff. (%): 86.5
