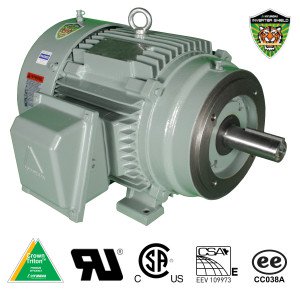

Hyundai Crown Triton Series IEEE-841 TEFC Enclosure C-Face Rigid Base Three Phase Motors 5 HP 3600 RPM 184TC Frame

Hyundai Crown Triton Series IEEE-841 TEFC Enclosure C-Face Rigid Base Three Phase Motors 5 HP 3600 RPM 184TC Frame

  • $1,464.00


Product Features:

  • Single Voltage, 460 Volt
  • TEFC enclosure
  • C-Face - Rigid Base
  • Class F insulation with Class N Varnish
  • Premium efficiency
  • Full compliance with IEEE-841, version 2009
  • Class B temperature rise
  • IP56 degree of protection
  • Dual rated service factor 1.15 for 40 degrees C / 1.0 for 65 degrees C
  • NEMA Design B torque
  • Parker Hannifin ProTech IP66 labyrinth seals on both drive-end and opposite drive-end bearings
  • Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
  • IEEE-841 motor test report supplied with each motor
  • Inverter duty, 10:1 CT / 1000:1 VT
  • Suitable for 50 hz operation with 1.0 service factor
  • Class I, Division 2, Groups A, B, C, D

Technical Specs for Model #IEEE5-36-184TC

HP: 5
RPM: 3600
Voltage: 460
Frame: 184TC
FL Amps (A): 6.1
FL Eff. (%): 88.5
