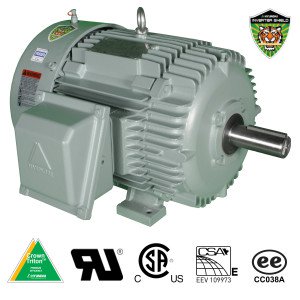

Hyundai Crown Triton Series IEEE-841 TEFC Enclosure Rigid Base Three Phase Motors 1.5 HP 3600 RPM 143T Frame
Product Features:
- Single Voltage, 460 Volt
- TEFC enclosure
- Rigid Base
- Class F insulation with Class N Varnish
- Premium efficiency
- Full compliance with IEEE-841, version 2009
- Class B temperature rise
- IP56 degree of protection
- Dual rated service factor 1.15 for 40 degrees C / 1.0 for 65 degrees C
- NEMA Design B torque
- Parker Hannifin ProTech IP66 labyrinth seals on both drive-end and opposite drive-end bearings
- Inverter shield insulation and inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31 for exceptional corona and transient protection
- IEEE-841 motor test report supplied with each motor
- Inverter duty, 10:1 CT / 1000:1 VT
- Suitable for 50 hz operation with 1.0 service factor
- Class I, Division 2, Groups A, B, C, D
Technical Specs for Model #IEEE1.5-36-143T
HP: 1.5
RPM: 3600
Voltage: 460
Frame: 143T
FL Amps (A): 2.0
FL Eff. (%): 84.0
