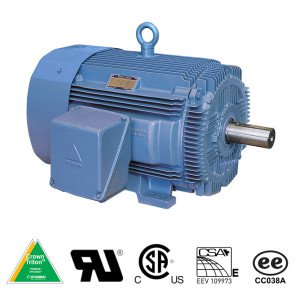

Hyundai Crown Triton Series TEFC Enclosure Rigid Base Three Phase Motors 1.5 HP 1800 RPM 145T Frame

Hyundai Crown Triton Series TEFC Enclosure Rigid Base Three Phase Motors 1.5 HP 1800 RPM 145T Frame

  • $484.00


Product Features:

  • 208-230/460 Volt
  • TEFC enclosure
  • Rigid Base
  • Class F insulation with Class N Varnish
  • Premium efficiency
  • IP55 degree of protection
  • Dual rated service factor 1.15 for 40 degrees C / 1.0 for 65 degrees C
  • NEMA Design B
  • Inverter ready, 10:1 CT / 20:1 VT
  • Cast iron frame and conduit box
  • Suitable for part winding start on low voltage
  • F2 field mountable
  • Suitable for 50 hz operation with 1.0 service factor
  • Class I, Division 2, Groups A, B, C, D

Technical Specs for Model #HHI1.5-18-145T

HP: 1.5
RPM: 1800
Voltage: 208-230/460
Frame: 145T
FL Amps (A): 2.2
FL Eff. (%): 86.5
