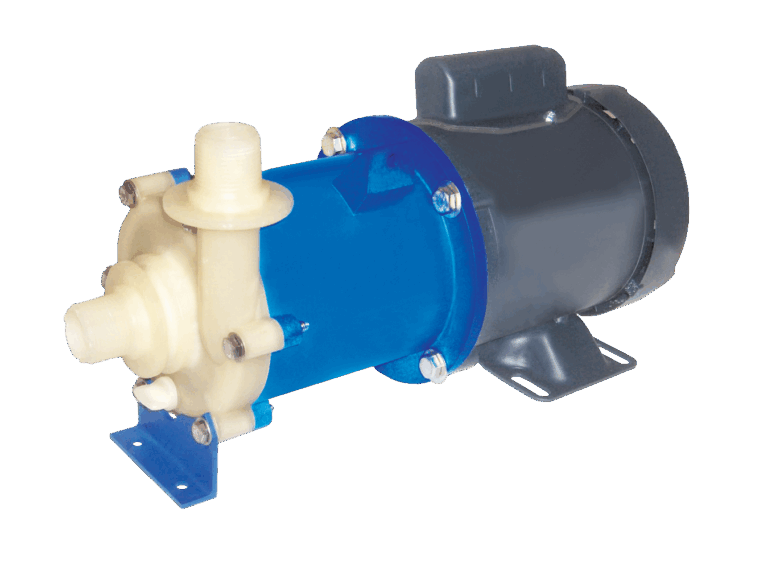

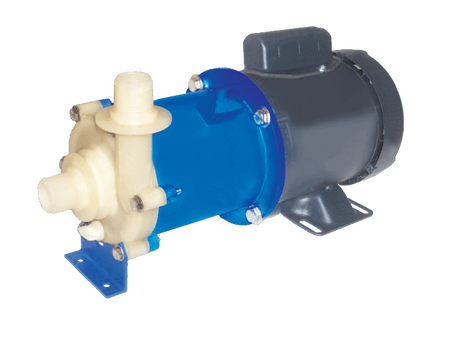

Sethco’s Magnetic Drive End Suction Pumps—including the 500, 1000, and 2500 Series—deliver reliable, leakproof performance for safe handling of corrosive and hazardous fluids. Built with durable thermoplastic construction, these sealless pumps are engineered to minimize maintenance requirements while providing dependable operation in chemical processing, plating, and wastewater applications.
Sealless, Leakproof Operation
The magnetic drive design eliminates mechanical seals, removing a primary source of leaks and emissions. This enhances safety and containment when transferring aggressive or hazardous process fluids.
High-Performance Corrosion Resistance
Constructed from advanced thermoplastics such as polypropylene and Kynar, these pumps offer excellent resistance to acids, caustics, bleaches, and other corrosive chemicals commonly found in industrial fluid handling applications.
Reduced Maintenance Requirements
With no mechanical seals to wear or replace, the sealless design significantly reduces maintenance complexity, lowers downtime, and improves overall system reliability.
Versatile Application Coverage
The PM/KM Series is well suited for filtration, recirculation, and transfer duties across industries including metal finishing, electronics, chemical processing, and water treatment.
Streamlined Parts Interchangeability
Shared components across Sethco pump platforms—including interchangeability between PM/KM end suction models and PMSP/KMSP self-priming versions—simplify spare parts inventory and reduce maintenance logistics.
500 Series Product Specifications
Capacities: Up to 30 GPM (114 LPM)
Heads: Up to 38 feet (12 m)
Motors: ¼ to ¾ hp (0.19 to 0.56 kW)
Max Temperature: Up to 180°F* (82.2°C) Poly or 210°F* (98.9°C) PVDF
Working Pressures: Up to 45 psig (310.3 kPa) at 75°F (23.9 °C)*
Available Sizes: 3
Construction: Polypropylene or PVDF/Kynar
Design: Horizontal End-Suction
1000 Series Product Specifications
Capacities: Up to 73 GPM (280 LPM)
Heads: Up to 60 feet (18 m)
Motors: ½ to 3 hp (0.37 to 2.2 kW)
Max Temperature: Up to 180°F* (82.2°C) Poly or 210°F* (98.9°C) PVDF
Working Pressures: 60 psig (413.7 kPa) at 75°F (23.9°C)
Available Sizes: 6
Construction: Polypropylene or PVDF/Kynar
Design: Horizontal End-Suction
1500 Series Product Specifications
Capacities: Up to 96 GPM (365 LPM)
Heads: 80 ft (24 m)
Motors: 2 to 3 hp (1.5 to 2.2 kW)
Max Temperature: Up to 180°F* (82.2°C) Poly or 210°F* (98.9°C) PVDF
Working Pressures: 60 psig (413.7 kPa) at 75°F (23.9°C)
Available Sizes: 1
Construction: Polypropylene or PVDF/Kynar
Design: Horizontal End-Suction
2500 Series Product Specifications
Capacities: Up to 250 GPM (946 LPM)
Heads: Up to 94 feet (29 m)
Motors: 3 to 10 hp (2.2 to 7.5 kW)
Max Temperature: Up to 180°F* (82.2°C) Poly or 210°F* (98.9°C) PVDF
Working Pressures: 80 psig (551.6 kPa) at 75°F (23.9°C)
Available Sizes: 4
Construction: Polypropylene or PVDF/Kynar
Design: Horizontal End-Suction
