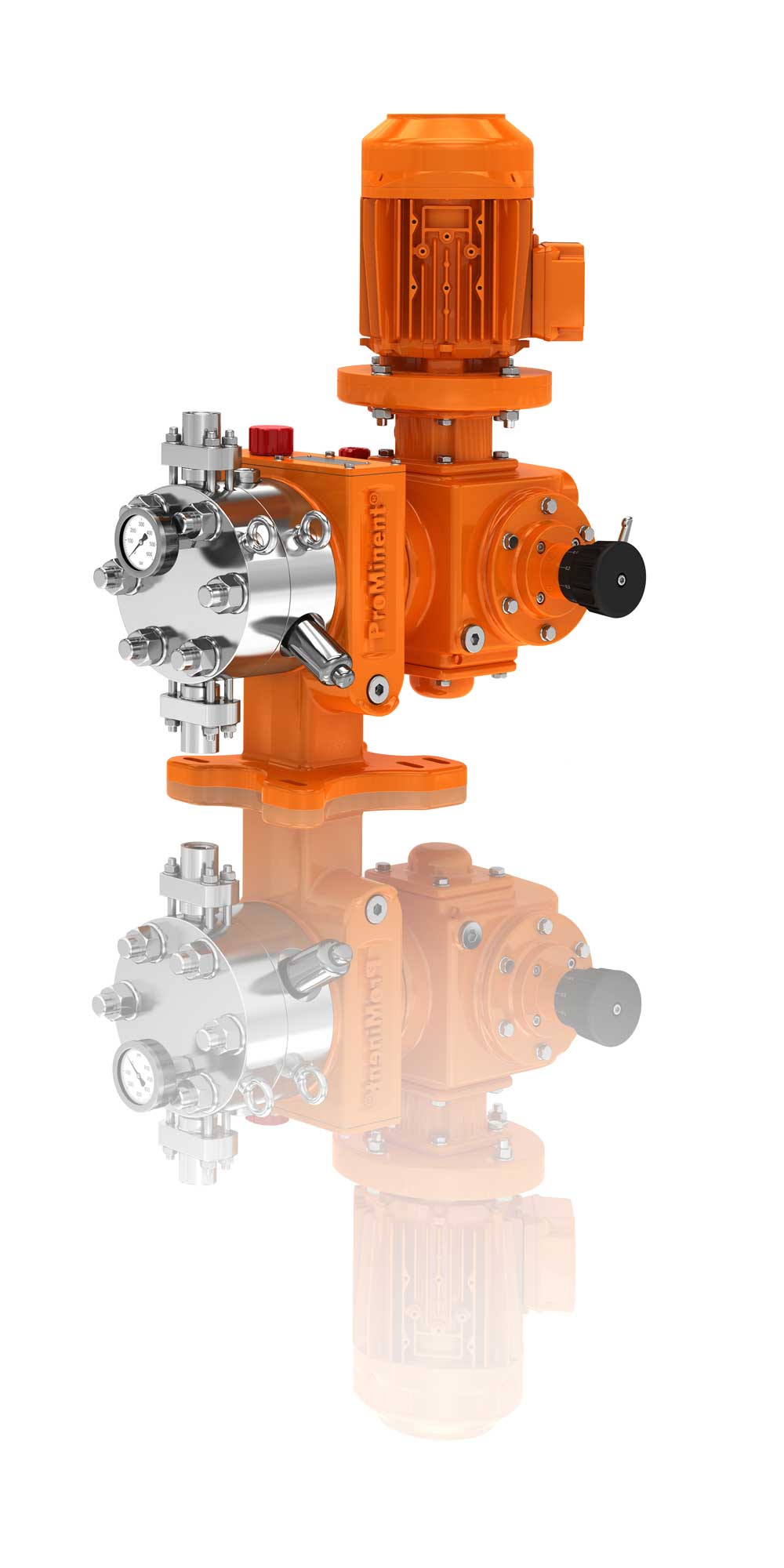

Prominent Evolution Series

• Flow rates from 0.48 to 1932.48 gph per head
• Operating Pressures up to 5802 psig
• Variable eccentric drive for accurate, robust operation and a smaller footprint
• Four frame sizes to cover a broad range of applications
• PTFE multi-layer diaphragm with integral diaphragm rupture warning system is standard on all pumps
• Liquid End Materials in 316ss and Alloy 20, additional materials available on demand
• Exclusive Diaphragm Position Control protects the pump against operating faults (e.g. no damage in the event of a blockage on either the suction or discharge side). This advance in pump design technology means a more reliable metering pump in every application
• Metering reproducibility is better than ±1 % within the 10 ‐ 100 % stroke length range under defined conditions and with correct installation
• Continuous air bleeding of the hydraulic oil chamber ensures reliable operation
• Integral adjustable internal hydraulic pressure relief valve with features that allow for oil cooling during extended periods of process upset conditions
• Excellent flexibility
• The Evolution's modular compact construction allows for a wide range of applications
• Up to five (6) metering units of identical or varying pump capacities can be multiplexed for the greatest application adaptability
• A rotatable drive housing allows for installation of motor in a vertical or horizontal position to better meet specific footprint requirements
• Custom designs are possible to meet a variety of application demands
