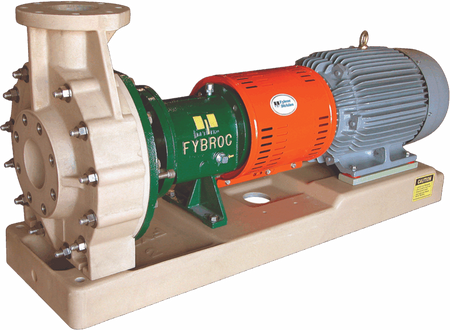

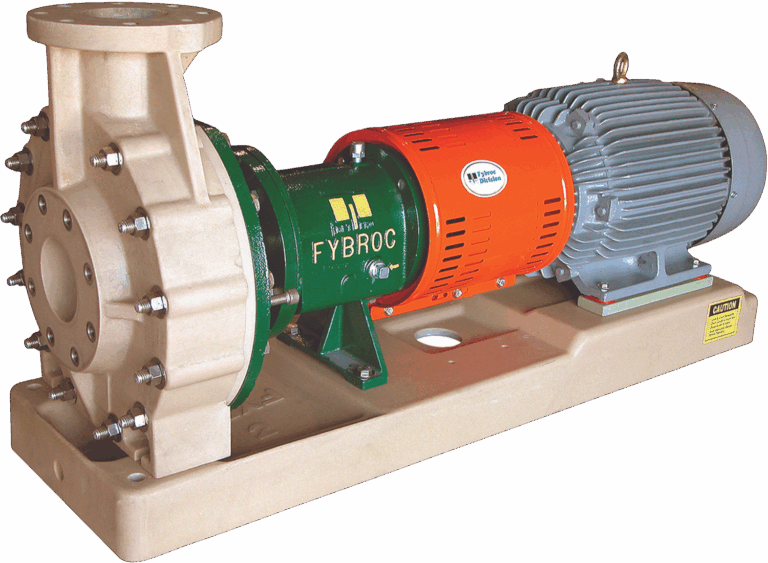

Series 1500 Horizontal Pumps

The Fybroc Series 1500 combines exceptional chemical resistance with proven mechanical reliability for demanding industrial applications. Engineered with a heavy-duty power frame and a back pull-out configuration, this robust FRP pump is designed to maximize uptime, simplify maintenance, and deliver a strong return on investment in the most aggressive operating environments.

Superior Corrosion Resistance
Constructed from proprietary fiberglass reinforced polymer (FRP), the Series 1500 offers outstanding resistance to corrosive chemicals, providing significantly longer service life than comparable metal pumps in harsh process conditions.

ANSI/ASME B73.1 Compliant Design
Built to meet ANSI/ASME B73.1 standards, this frame-mounted pump ensures reliable performance, dimensional interchangeability, and easy replacement of similarly sized metallic ANSI pumps in existing systems.

Extended Bearing Life
A rugged power frame with a large oil sump and heavy-duty bearings is engineered to withstand demanding loads, extending service intervals and improving overall equipment reliability.

High-Capacity Performance Range
With capacities up to 5,000 GPM (18,927 LPM) and heads up to 400 feet (122 m), the Series 1500 is well-suited for a wide range of corrosive-duty applications in chemical processing, mining, and wastewater treatment.

Fybroc Quick Ship Availability
Select configurations of the Series 1500 are available through the Fybroc Quick Ship program, offering 11 pre-engineered sizes with standard configurations ready to ship in as little as four weeks—providing reliable performance with faster delivery for urgent replacements and time-sensitive projects.
