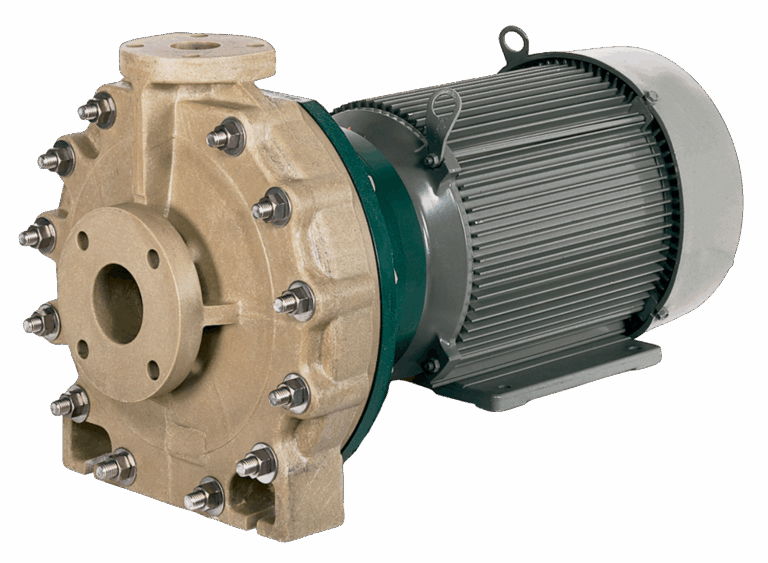

Series 1530 Close-Coupled ANSI Pumps

Please contact us for price.

You can also reach out to us at 225-454-0860.

When corrosion resistance is required but installation space is limited, the Fybroc Series 1530 provides an ideal solution. Delivering the same proven chemical handling durability as the Series 1500, this compact close-coupled FRP pump is designed for applications where efficiency, simplicity, and space savings are essential, making it especially well-suited for OEM and skid-mounted systems.

Exceptional Corrosion Resistance
Built from the same robust fiberglass reinforced polymer (FRP) construction as frame-mounted models, the Series 1530 offers outstanding resistance to corrosive chemicals and long-term durability in harsh environments.

Compact, Space-Saving Design
The close-coupled configuration eliminates the need for a baseplate and coupling, reducing overall footprint and providing a lightweight solution for space-constrained installations.

Simplified Installation and Alignment
With no pump-to-motor alignment required, the Series 1530 significantly reduces installation time and simplifies ongoing maintenance, improving overall system efficiency.

Ideal for OEM and Skid Systems
Its compact footprint and easy integration make the Series 1530 an excellent choice for OEM manufacturers, skid builders, and packaged system designers seeking reliable performance in a streamlined design.

Capacities: Up to 1,500 GPM (5,678 LPM)

Heads: Up to 400 feet (122 m)

Available Sizes: 16

Construction: Fiberglass Reinforced Polymer (FRP)

Design: Horizontal, Close-Coupled, ANSI/ASME 73.1
