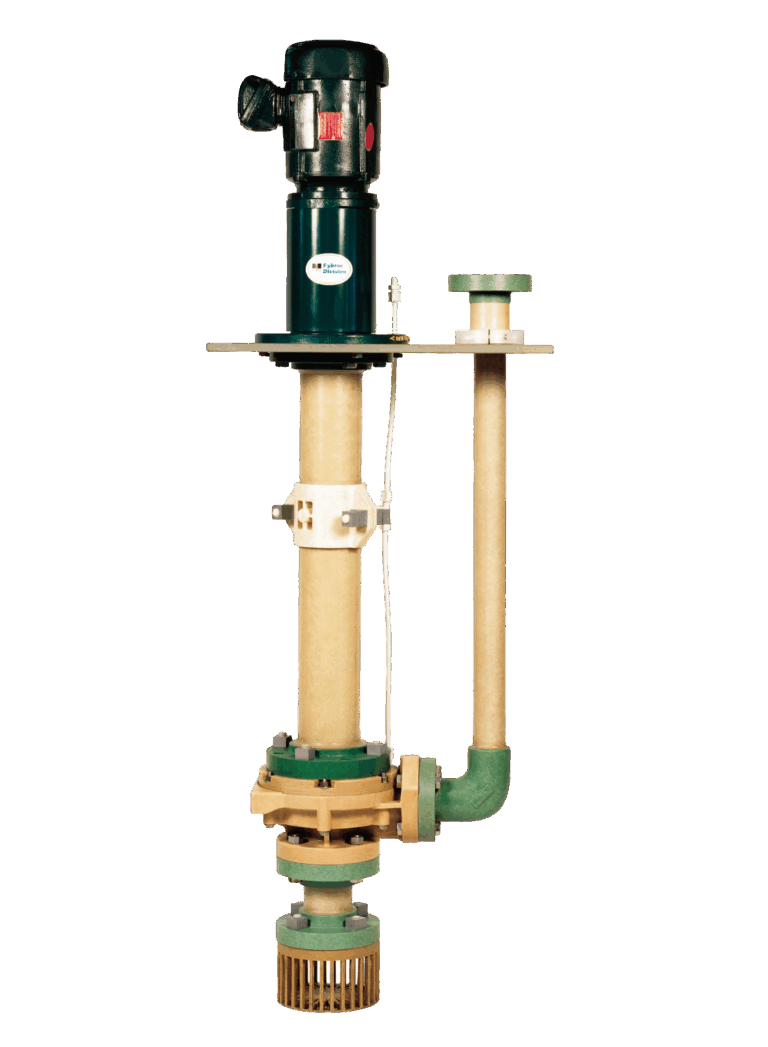

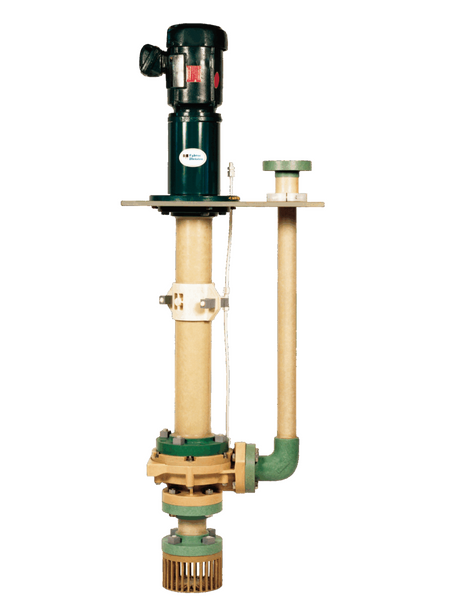

Series 5500 Vertical Sump Pumps

Designed for maximum reliability in deep, aggressive chemical sumps, the Fybroc Series 5500 delivers extended service life and reduced maintenance in the most demanding industrial environments. Engineered from shaft to strainer, this heavy-duty vertical pump combines advanced FRP construction with innovative hydraulic and mechanical features to ensure long-term performance in corrosive and abrasive service conditions.

Complete Corrosion Resistance
All wetted components are manufactured from fiberglass-reinforced vinyl ester or epoxy resins, providing exceptional resistance to a broad range of aggressive chemical wastes and extending service life in harsh environments.

Extended Bearing Life
In larger sizes, a dual volute casing design balances radial forces on the impeller, reducing bearing loads and significantly extending operational life under continuous-duty conditions.

Simplified Field Maintenance
Features such as split sleeve bearings and an invertible column design allow key components to be serviced in place, reducing the need for full disassembly and minimizing downtime.

High-Capacity Performance
Engineered for demanding high-volume applications, the Series 5500 delivers capacities up to 5,000 GPM (18,927 LPM) and heads up to 400 feet (122 m), making it well-suited for chemical transfer, wastewater, and industrial runoff service.
