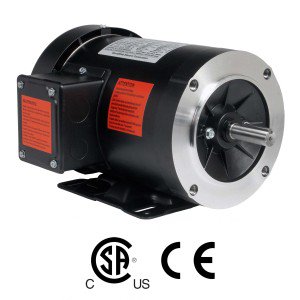

Worldwide General Purpose Three-Phase C-Face - Removable Base Motor 3/4 HP 3600 RPM

Worldwide General Purpose Three-Phase C-Face - Removable Base Motor 3/4 HP 3600 RPM

  • $244.37


Product Features:

  • 208-230/460 volt
  • TEFC enclosure
  • 1.15 service factor
  • 115/208-230 volt
  • Class F insulation
  • VPI copper windings
  • Anti-rust film applied to rotor
  • Improved shaft seal on drive-end protects drive-end bearing from moisture and contaminants
  • Inverter rated, 4:1 CT / 10:1 VT
  • Suitable for 50 hz operation with 1.0 service factor



Technical Specs for Model #NAT34-36-56CB

HP: 3/4
RPM: 3600
Voltage: 208-230/460
Frame: 56C
FL Amps (A): 1.2
FL Eff. (%): 71.5
