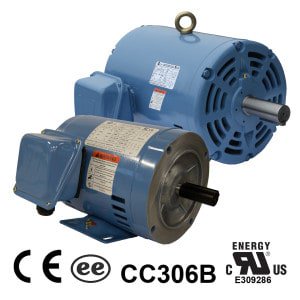

Worldwide Open Drip Proof (ODP) Rigid Base Three-Phase Motors 1 HP 3600 RPM 143T Frame
Product Features:
- 208-230/460 HP, 60 Hz
- 190/380 volt, 50 HZ
- ODP enclosure (rolled steel enclosure)
- IP23 degree of protection
- 1.15 service factor (1.0 SF for 50 Hz applications)
- Class F insulation
- Rigid Base
- Premium efficiency
- Class B temperature rise
- Inverter duty, 10:1 CT / 20:1 VT (1.0 service factor)
- Inverter grade magnet wire meets or exceeds NEMA MG-1 Part 31
- Pre-drilled and tapped drive endbells on 182T frame and up to accept Inpro Current Diverter Grounding Rings; No machining required, simple and easy installation
- Exclusive double VPI process for winding insulation
- Double drilled feet to accommodate mounting flexibility
Technical Specs for Model #ODP1-36-143T
HP: 1
RPM: 3600
Voltage: 208-230/460
Frame: 143T
FL Amps (A): 1.35
FL Eff. (%): 77.0
