CPKN

Please contact us for price.

You can also reach out to us at 225-454-0860.

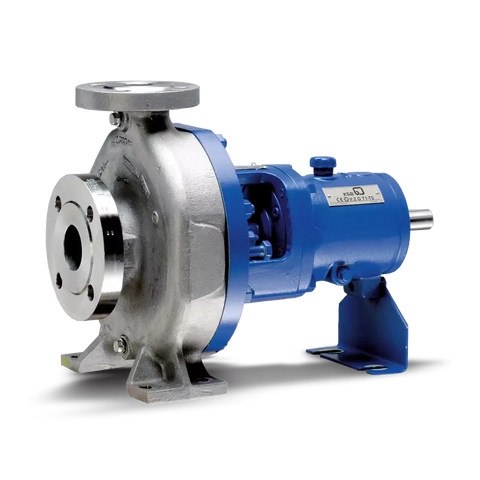

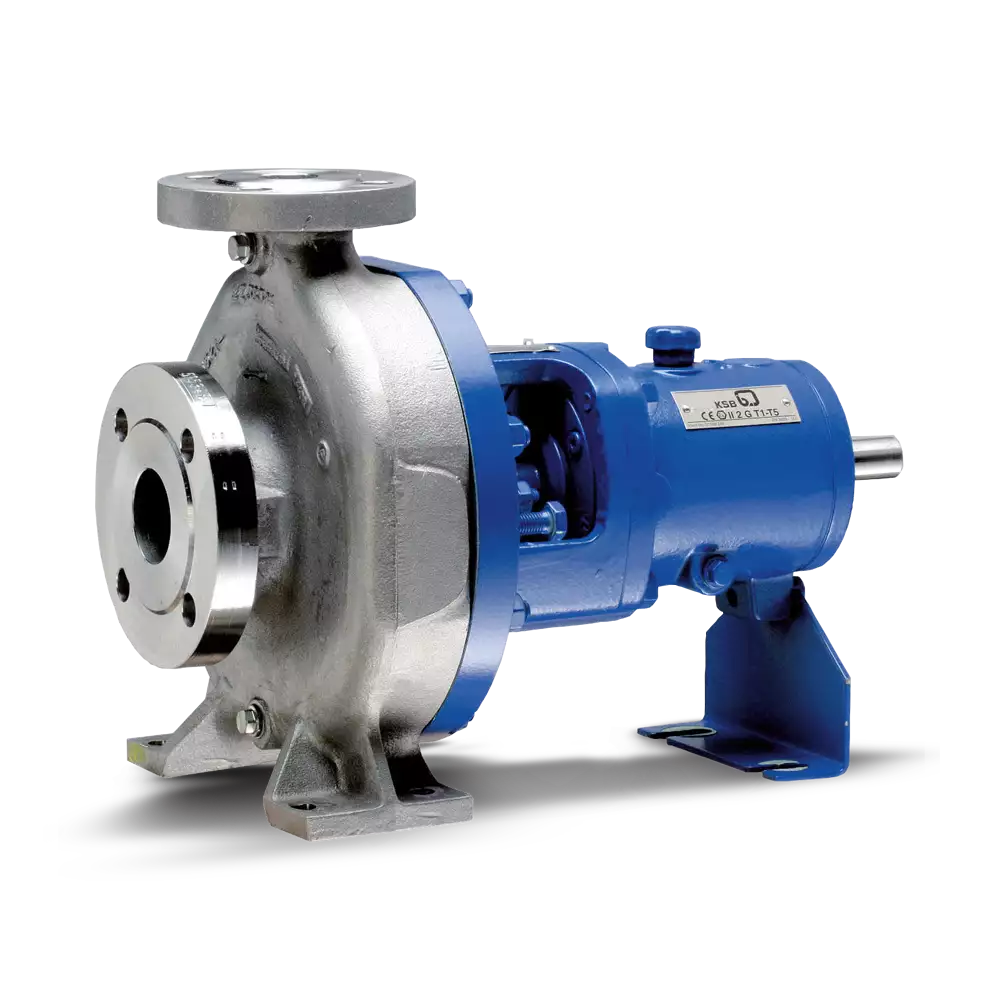

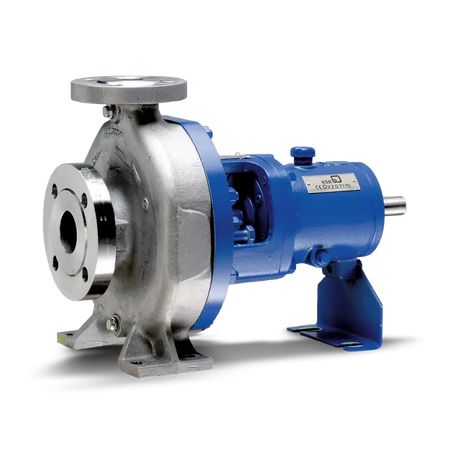

Single-stage, single-suction horizontal process pump with a radially split volute casing and back pull-out design for simplified maintenance. Equipped with a radial-flow impeller and engineered in accordance with ISO 2858 and ISO 5199 standards. Available with optional wet-shaft construction, conical seal chamber, and semi-open impeller configurations. ATEX-certified versions are offered for safe operation in hazardous and potentially explosive environments.

Technical Specifications

Maximum Flow Rate: 21,100 GPM (gallons per minute)
Maximum Head: 902 ft
Maximum Working Pressure: 363 psi
Maximum Fluid Temperature: 752°F
