Etanorm/Etanorm MyFlow/Etanorm Pro

Please contact us for price.

You can also reach out to us at 225-454-0860.

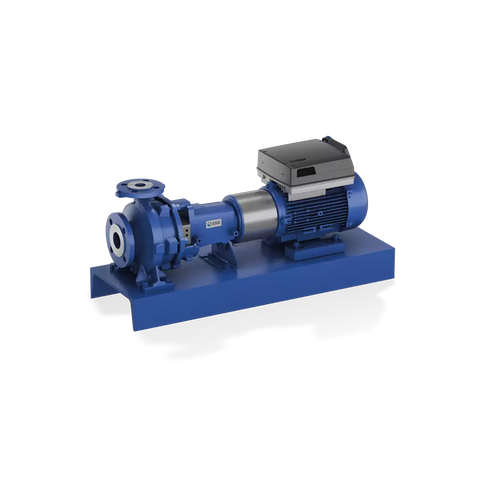

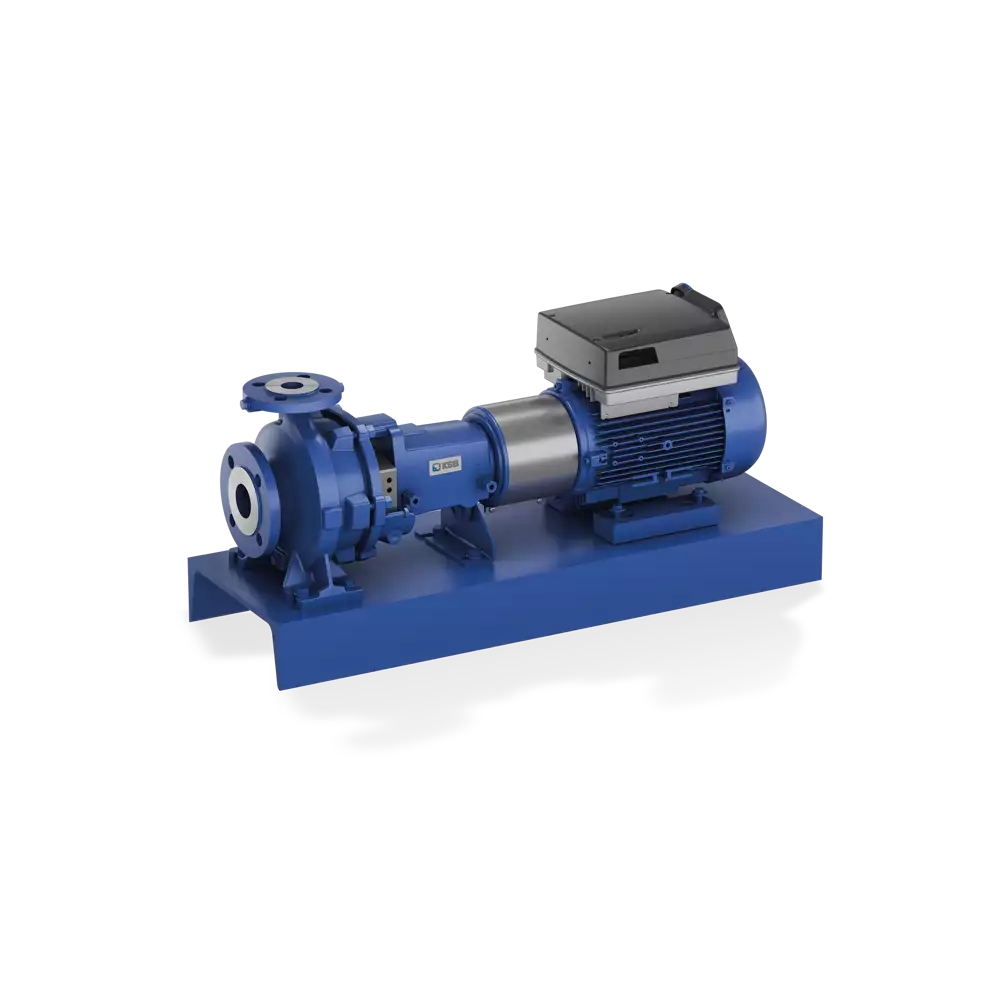

Single-stage volute casing pump with a back pull-out design, engineered to EN 733 dimensional standards. The pump is paired with an advanced high-efficiency drive package featuring a variable-speed motor and integrated frequency inverter, delivering IE4/IE5-level energy performance and significantly exceeding current efficiency requirements.

Designed for reliability and ease of maintenance, the pump incorporates replaceable casing wear rings, a closed radial impeller with optimized curved vanes, and either single or double mechanical seal arrangements. A replaceable shaft sleeve protects the shaft in the seal area, extending service life and reducing maintenance costs.

The back pull-out configuration allows the rotating assembly—including the coupling, bearing housing, and impeller—to be removed without disturbing the pump casing or connected piping, minimizing downtime during servicing. Motor mounting dimensions conform to IEC standards for broad compatibility. ATEX-certified versions are available for operation in hazardous and potentially explosive environments.

Technical Specifications

Maximum Flow Rate: 10,200 GPM (gallons per minute)
Maximum Head: 525 ft
Maximum Working Pressure: 232 psi
Maximum Fluid Temperature: 284°F
