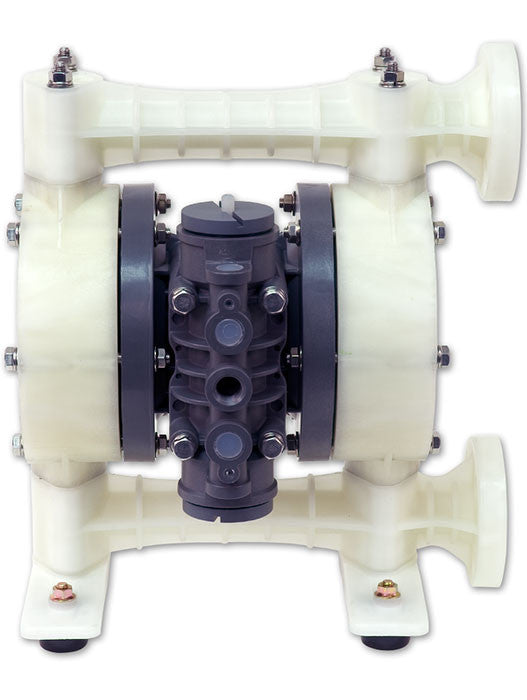

Yamada Pump NDP-25BPS-PP-FLG

The Yamada NDP-25BPS-PP-FLG is a high-efficiency air operated diaphragm pump engineered for exceptional flex life and chemical resistance when transferring mild acids, caustics, and water-based industrial slurries. Built with a corrosion-resistant polypropylene housing and durable Santoprene (TPO) diaphragms, check balls, and o-rings, this 1-inch ANSI flanged AODD unit delivers maximum flow rates up to 46.2 GPM (174.8 L/min) at air operating pressures up to 100 PSI.

Powered by Yamada’s patented non-lubricated C-spool air valve technology, this Yamada AODD pump guarantees stall-free performance, low maintenance, and zero oil-mist contamination in your plant. Its leak-resistant bolted construction, 1-inch ANSI flanged connections, and externally accessible air motor allow for quick, straightforward servicing—making it a reliable workhorse solution for chemical processing, water treatment, and general industrial fluid handling.

_________________________________________

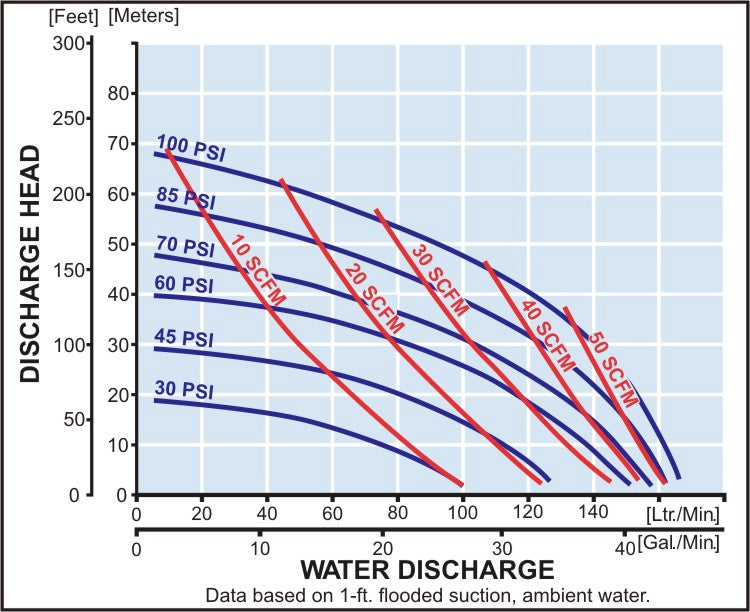

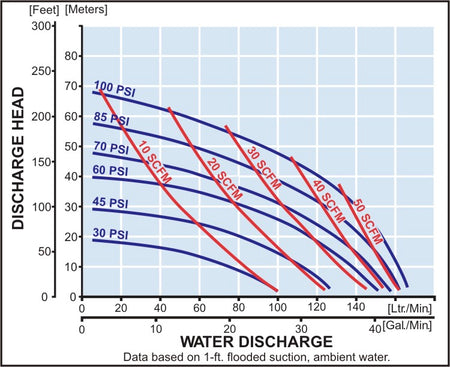

-46.2 Gallons/Minute (NDP-25)

-40.1 Gallons/Minute (G25)

1" Fluid Port (NPT or ANSI Flange)

Intake & Discharge Connections

• Polypropylene (PPG): 1" Female NPT or 1" ANSI Flange B16.5 #150
• Kynar®(PVDF): 1" Female NPT or 1" ANSI Flange B16.5 #150
• Aluminum (ADC-12): 1" Female NPT
• Stainless Steel: 1" Female NPT
• Cast Iron: 1" Female NPT
• Air Inlet: 3/8" Female NPT (includes ball valve)
• Air Exhaust: 3/4" Female NPT (includes silencer)



Diaphragm Maximum Liquid Temperature1

N: Buna N 180°F (82°C)
C: Neoprene 180°F (82°C)
S: Santoprene®(TPO) 180°F (82°C)
E: EPDM 212°F (100°C)
T: PTFE 212°F (100°C)
H: Hytrel®(TPE) 248°F (120°C)
V: Viton®fluoroelastomer 248°F (120°C)
U: Ultimate 212°F (100°C)
*Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. Kynar®pumps have a maximum temperature of 248°F (120°C) when fitted with Hytrel®or Viton®diaphragms.

Air Supply Pressure:
(All Models): 20 to 100 PSI (1.4 to 7 kgf/cm²)

Discharge Volume Per Cycle:
Rubber diaphragm: 0.23 gallons (862 cc) (NDP) | 0.158 gallons (G25)
PTFE diaphragm: 0.17 gallons (654 cc) (NDP) | 0.118 gallons (G25)

Maximum Cycles Per Minute
Rubber diaphragm: 210 (NDP) 253 (G25)
PTFE diaphragm: 210 (NDP) 297 (G25)

Maximum Size Solid1/8" (3 mm)
Maximum Dry Suction Lift: Rubber-fitted pump capability: 18-feet
Air Motor: Aluminum - Metal PumpsPlastic - Plastic PumpsOptional CoatingPTFE-coated (NDP)

Yamada Air-Operated Double Diaphragm Pumps

Engineered for High Performance. Manufactured to Last.

• Leak-Free Bolted Construction: Built for heavy-duty reliability, Yamada’s bolted design ensures precise alignment and effortless reassembly—eliminating the leaks and tedious rebuilds common with clamp-band retainers.
• Externally Accessible Air Valve: Perform quick inspections or routine maintenance directly in-line, without taking the pump out of service.
• Unified Valve Architecture: Standardized air valve assemblies across pump models reduce part confusion and lower inventory overhead.
• Maintenance-Free Pilot Valve: Yamada’s unique modular pilot valve uses an inner center-disk mechanism to trigger valve shifting with zero hassle. Free of dynamic O-rings or awkward snap rings, it requires no routine repairs.
