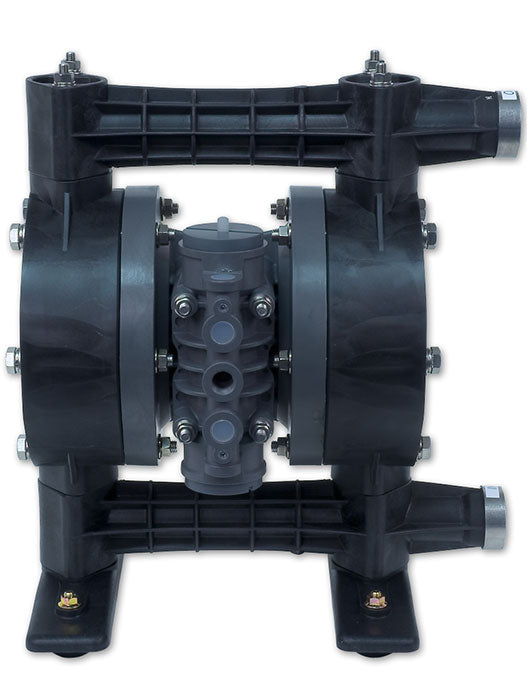

Yamada Pump NDP-25BVS-PN

The Yamada NDP-25BVS-PN is a high-performance 1-inch flanged air operated diaphragm pump engineered to transfer harsh chemicals, corrosive liquids, and abrasive slurries. Featuring a chemically resistant Kynar® (PVDF) body, durable Santoprene® (TPO) diaphragms, and a polypropylene air motor section, this robust Yamada AODD pump offers exceptional thermal and mechanical resistance with flow rates up to 46.2 GPM.

Designed with 1" NPT fluid ports and Yamada’s signature leak-free bolted body construction, this heavy-duty AODD pump eliminates the reassembly misalignment and leakage risks typical of traditional clamp-band designs. Its patented, non-lubricated C-spool air valve features an externally accessible air motor, allowing for fast, in-line inspection and maintenance without taking the pump out of service—reducing downtime and extending operational performance.

_________________________________________

-46.2 Gallons/Minute (NDP-25)

-40.1 Gallons/Minute (G25)

1" Fluid Port (NPT or ANSI Flange)

Intake & Discharge Connections

• Polypropylene (PPG): 1" Female NPT or 1" ANSI Flange B16.5 #150
• Kynar®(PVDF): 1" Female NPT or 1" ANSI Flange B16.5 #150
• Aluminum (ADC-12): 1" Female NPT
• Stainless Steel: 1" Female NPT
• Cast Iron: 1" Female NPT
• Air Inlet: 3/8" Female NPT (includes ball valve)
• Air Exhaust: 3/4" Female NPT (includes silencer)



Diaphragm Maximum Liquid Temperature1

N: Buna N 180°F (82°C)
C: Neoprene 180°F (82°C)
S: Santoprene®(TPO) 180°F (82°C)
E: EPDM 212°F (100°C)
T: PTFE 212°F (100°C)
H: Hytrel®(TPE) 248°F (120°C)
V: Viton®fluoroelastomer 248°F (120°C)
U: Ultimate 212°F (100°C)
*Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material. Kynar®pumps have a maximum temperature of 248°F (120°C) when fitted with Hytrel®or Viton®diaphragms.

Air Supply Pressure:
(All Models): 20 to 100 PSI (1.4 to 7 kgf/cm²)

Discharge Volume Per Cycle:
Rubber diaphragm: 0.23 gallons (862 cc) (NDP) | 0.158 gallons (G25)
PTFE diaphragm: 0.17 gallons (654 cc) (NDP) | 0.118 gallons (G25)

Maximum Cycles Per Minute
Rubber diaphragm: 210 (NDP) 253 (G25)
PTFE diaphragm: 210 (NDP) 297 (G25)

Maximum Size Solid1/8" (3 mm)
Maximum Dry Suction Lift: Rubber-fitted pump capability: 18-feet
Air Motor: Aluminum - Metal PumpsPlastic - Plastic PumpsOptional CoatingPTFE-coated (NDP)

Yamada Air-Operated Double Diaphragm Pumps

Engineered for High Performance. Manufactured to Last.

• Leak-Free Bolted Construction: Built for heavy-duty reliability, Yamada’s bolted design ensures precise alignment and effortless reassembly—eliminating the leaks and tedious rebuilds common with clamp-band retainers.
• Externally Accessible Air Valve: Perform quick inspections or routine maintenance directly in-line, without taking the pump out of service.
• Unified Valve Architecture: Standardized air valve assemblies across pump models reduce part confusion and lower inventory overhead.
• Maintenance-Free Pilot Valve: Yamada’s unique modular pilot valve uses an inner center-disk mechanism to trigger valve shifting with zero hassle. Free of dynamic O-rings or awkward snap rings, it requires no routine repairs.
