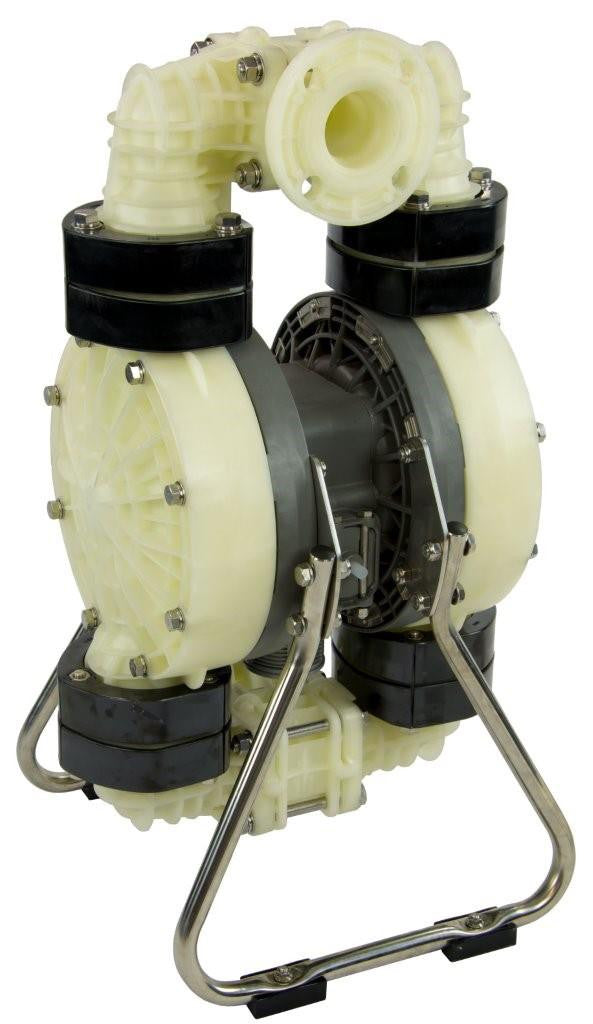

Yamada Pump NDP-50BPT-PP

The Yamada NDP-50BPT-PP is an advanced, non-metallic 2-inch air operated diaphragm pump engineered for high-volume handling of concentrated acids, aggressive reagents, and highly corrosive solvents. Constructed with a chemical-resistant Polypropylene liquid casing and chemically inert solid PTFE (Teflon) diaphragms, this heavy-duty pump ensures zero fluid contamination and maximum resistance to aggressive chemical attack. The integrated Polypropylene air motor (-PP) provides complete non-metallic protection, preventing atmospheric air-end corrosion and premature failure caused by ambient acid fumes, chemical vapors, and harsh washdowns.

Driven by Yamada’s patented, oil-free C-Spool air-valve technology, this non-metallic Yamada AODD unit delivers non-lubricated, stall-free operation across continuous processing cycles. Capable of output flow rates up to 140 GPM while passing suspended solids up to 5/16”, the NDP-50BPT-PP AODD pump offers a seal-less, leak-proof, and fully chemical-resistant fluid transfer solution for semiconductor wet benches, chemical etching lines, plating bath recirculation, and hazardous chemical processing.

2" Fluid Port (NPT or ANSI Flange)

NDP-500 Series:excess of 200 Gallons/Minute

NDP-50 Series:164 Gallons/Minute

G50 Series:193 Gallons/Minute

Intake & Discharge Connections

Polypropylene (PPG): 2" ANSI Flange B16.5 #150
Kynar®(PVDF): 2" ANSI Flange B16.5 #150
Aluminum (ADC-12): 2" ANSI Flange B16.5 #150 (with tapped 2" Female NPT)
Stainless Steel (316): 2" ANSI Flange B16.5 #150 or 2" Female NPT
Cast Iron: 2" Female NPT

Air Inlet: 3/4" Female NPT (includes ball valve)
Air Exhaust: 1" Female NPT (includes silencer)

*NDP-500 only available in Stainless Steel.

Diaphragm Maximum Liquid Temperature

N: Buna N 180°F (82°C)
C: Neoprene 180°F (82°C)
S: Santoprene®(TPO) 180°F (82°C)
E: EPDM 212°F (100°C)
T: PTFE 212°F (100°C)
H: Hytrel®(TPE) 248°F (120°C0)
V: Viton®fluoroelastomer 248°F (120°C)
U/W: Ultiimate 212°F (100°C)
F: Full Flow PTFE 212°F (100°C) (only available for NDP-500)

*The maximum liquuid temperature for metal and Kynar®fitted pumps is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Supply Pressure :

(NDP-50): 20 to 100 PSI Air Supply Pressure
(G50, NDP-500): 20 to 125 PSI Discharge Volume Per Cycle

Rubber diaphragm: 1.12 gallons (NDP-50)
PTFE diaphragm: 0.69 gallons (NDP-50)
Rubber & PTFE diaphragms: 0.63 gallons (G50)

Maximum Cycles Per Minute :

Rubber diaphragm: 146 (NDP-50), 279 (G50)
PTFE diaphragm: 220 (NDP-50), 267 (G50)

Maximum Size Solid: 5/16" (8 mm)

Maximum Dry Suction Lift:

Rubber-fitted pump capability: 19-feetAir Motor

Optional Coating:

PTFE-coated (NDP-50, NDP-500)

Yamada Air-Operated Double Diaphragm Pumps

Engineered for High Performance. Manufactured to Last.

• Leak-Free Bolted Construction: Built for heavy-duty reliability, Yamada’s bolted design ensures precise alignment and effortless reassembly—eliminating the leaks and tedious rebuilds common with clamp-band retainers.
• Externally Accessible Air Valve: Perform quick inspections or routine maintenance directly in-line, without taking the pump out of service.
• Unified Valve Architecture: Standardized air valve assemblies across pump models reduce part confusion and lower inventory overhead.
• Maintenance-Free Pilot Valve: Yamada’s unique modular pilot valve uses an inner center-disk mechanism to trigger valve shifting with zero hassle. Free of dynamic O-rings or awkward snap rings, it requires no routine repairs.
