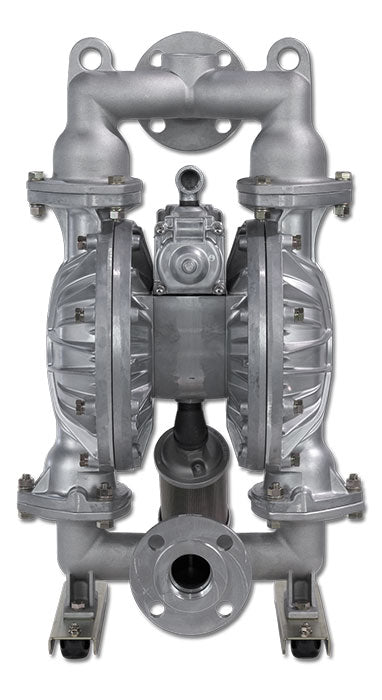

Yamada Pump NDP-80BAC

The Yamada NDP-80BAC is an industrial-grade 3-inch air-operated double diaphragm pump engineered for high-volume transfer of general water-based chemicals, industrial effluents, mild abrasive slurries, and non-corrosive fluids. Featuring standard ANSI Flange connections for direct, leak-free pipe integration, this heavy-duty pump pairs a durable cast Aluminum body with highly resilient Neoprene diaphragms and check valves. This material configuration provides excellent mechanical flex life, good wear resistance, and reliable fluid containment for standard industrial duty cycles.

Driven by Yamada’s patented, oil-free C-Spool air-valve technology, this dependable AODD unit guarantees stall-free, non-lubricated performance under continuous operation. Capable of output flow rates up to 215 GPM while passing suspended solids up to 13/32”, the NDP-80BAC offers a seal-less, explosion-proof liquid handling solution suited for industrial wastewater treatment, general plant utility transfer, sump evacuation, and bulk water management.

3" Fluid Port (NPT or ANSI Flange)

NDP-800 Series: Excess of 300Gallons Per Minute

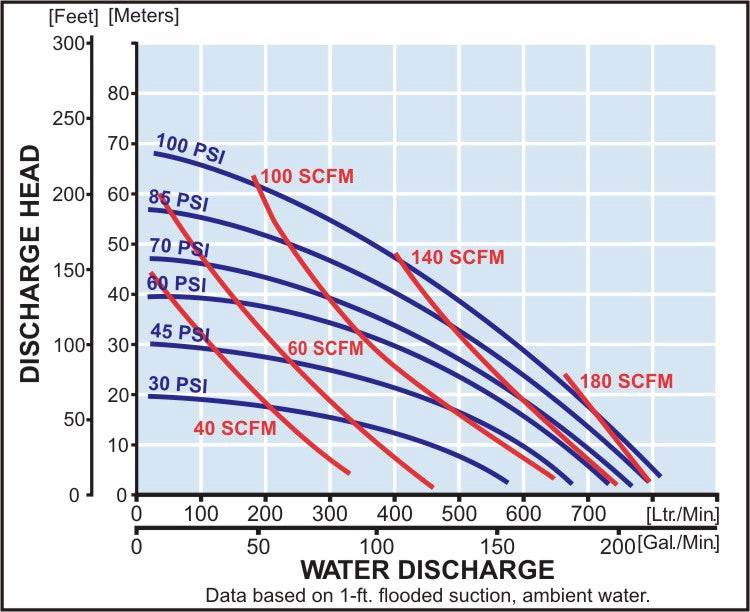

NDP-80 Series: 215 Gallons Per Minute

Intake & Discharge Connections

Polypropylene (PPG): 3" ANSI Flange B16.5 #150 (NDP-80)
Aluminum (ADC-12): 3" ANSI Flange B16.5 #150 (with tapped 3" Female NPT) (NDP-80)
Stainless Steel (316): 3" ANSI Flange B16.5 #150 (NDP-80/NDP-800)
3" Female NPT (NDP-800)
Cast Iron: 3" Female NPT (NDP-80)

Air Inlet: 3/4" Female NPT (includes ball valve)
Air Exhaust: 1" Female NPT (includes silencer)

Diaphragm Maximum Liquid Temperature1

N: Buna N 180°F (82°C)
C: Neoprene 180°F (82°C)
S: Santoprene®(TPO) 180°F (82°C)
E: EPDM 212°F (100°C)
T: PTFE 212°F (100°C)
H: Hytrel®(TPE) 248°F (120°C)
V: Viton®fluoroelastomer 248°F (120°C)
U: Ultimate 212°F (100°C)

*The maximum liquid temperature for metal is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Supply Pressure (All Models)

20 to 100 PSI (1.4 to 7 kgf/cm²) (NDP-80)
20 to 120 PSI (NDP-800)

Discharge Volume Per Cycle

Rubber diaphragm: 2.26 gallons (8.57 liters) (NDP-80)
PTFE diaphragm: 1.0 gallons (3.8 liters) (NDP-80)

Maximum Cycles Per Minute

Rubber diaphragm: 95 (NDP-80)
PTFE diaphragm: 160 (NDP-80)

Maximum Size Solid: 13/32" (10 mm)

Maximum Dry Suction Lift: Rubber-fitted pump capability: 19-feet

Air Motor
Standard: Aluminum
Optional Coating: PTFE-coated

Yamada Air-Operated Double Diaphragm Pumps

Engineered for High Performance. Manufactured to Last.

• Leak-Free Bolted Construction: Built for heavy-duty reliability, Yamada’s bolted design ensures precise alignment and effortless reassembly—eliminating the leaks and tedious rebuilds common with clamp-band retainers.
• Externally Accessible Air Valve: Perform quick inspections or routine maintenance directly in-line, without taking the pump out of service.
• Unified Valve Architecture: Standardized air valve assemblies across pump models reduce part confusion and lower inventory overhead.
• Maintenance-Free Pilot Valve: Yamada’s unique modular pilot valve uses an inner center-disk mechanism to trigger valve shifting with zero hassle. Free of dynamic O-rings or awkward snap rings, it requires no routine repairs.
