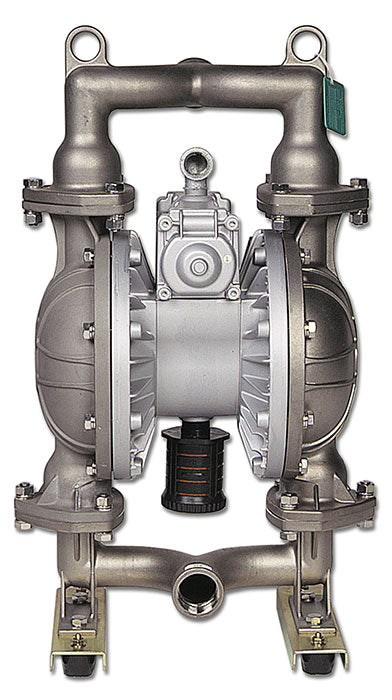

Yamada Pump NDP-80BST-NPT

The Yamada NDP-80BST-NPT is a durable AODD  pump designed for demanding industrial fluid-handling applications. Featuring a 316 stainless steel housing, this Yamada AODD pump provides excellent durability and corrosion resistance. The pump is equipped with 3" female NPT threaded connections for straightforward installation and incorporates PTFE diaphragms and PTFE check balls, making it well-suited for handling a variety of challenging fluids.

As a dependable air operated diaphragm pump, the NDP-80BST-NPT provides reliable, air-powered operation without requiring electricity at the pump. Its rugged construction and versatile materials make it an excellent choice for chemical transfer, wastewater, process fluids, and other industrial pumping applications. For customers looking for a reliable Yamada AODD pump with stainless steel construction and PTFE wetted components, the NDP-80BST-NPT is a strong solution.

3" Fluid Port (NPT or ANSI Flange)

NDP-800 Series: Excess of 300Gallons Per Minute

NDP-80 Series: 215 Gallons Per Minute

Intake & Discharge Connections

Polypropylene (PPG): 3" ANSI Flange B16.5 #150 (NDP-80)
Aluminum (ADC-12): 3" ANSI Flange B16.5 #150 (with tapped 3" Female NPT) (NDP-80)
Stainless Steel (316): 3" ANSI Flange B16.5 #150 (NDP-80/NDP-800)
3" Female NPT (NDP-800)
Cast Iron: 3" Female NPT (NDP-80)

Air Inlet: 3/4" Female NPT (includes ball valve)
Air Exhaust: 1" Female NPT (includes silencer)

Diaphragm Maximum Liquid Temperature1

N: Buna N 180°F (82°C)
C: Neoprene 180°F (82°C)
S: Santoprene®(TPO) 180°F (82°C)
E: EPDM 212°F (100°C)
T: PTFE 212°F (100°C)
H: Hytrel®(TPE) 248°F (120°C)
V: Viton®fluoroelastomer 248°F (120°C)
U: Ultimate 212°F (100°C)

*The maximum liquid temperature for metal is determined by the elastomer (diaphragm material). Polypropylene pumps have a maximum liquid temperature of 180°F (82°C) regardless of diaphragm material.

Air Supply Pressure (All Models)

20 to 100 PSI (1.4 to 7 kgf/cm²) (NDP-80)
20 to 120 PSI (NDP-800)

Discharge Volume Per Cycle

Rubber diaphragm: 2.26 gallons (8.57 liters) (NDP-80)
PTFE diaphragm: 1.0 gallons (3.8 liters) (NDP-80)

Maximum Cycles Per Minute

Rubber diaphragm: 95 (NDP-80)
PTFE diaphragm: 160 (NDP-80)

Maximum Size Solid: 13/32" (10 mm)

Maximum Dry Suction Lift: Rubber-fitted pump capability: 19-feet

Air Motor
Standard: Aluminum
Optional Coating: PTFE-coated

Yamada Air-Operated Double Diaphragm Pumps

Engineered for High Performance. Manufactured to Last.

• Leak-Free Bolted Construction: Built for heavy-duty reliability, Yamada’s bolted design ensures precise alignment and effortless reassembly—eliminating the leaks and tedious rebuilds common with clamp-band retainers.
• Externally Accessible Air Valve: Perform quick inspections or routine maintenance directly in-line, without taking the pump out of service.
• Unified Valve Architecture: Standardized air valve assemblies across pump models reduce part confusion and lower inventory overhead.
• Maintenance-Free Pilot Valve: Yamada’s unique modular pilot valve uses an inner center-disk mechanism to trigger valve shifting with zero hassle. Free of dynamic O-rings or awkward snap rings, it requires no routine repairs.
